Advanced Vacuum Generation for Industrial Users
Our oil sealed rotary vane vacuum pump unit serves engineers and procurement specialists who require a dependable vacuum generation solution for diverse industrial settings. This unit operates efficiently across pressure ranges from atmospheric to deep vacuum levels, facilitated by a single stage rotary vane vacuum pump design tailored to sustain stable output. Targeted at manufacturing, packaging, and laboratory applications, the product addresses the needs of industries that demand reliable air and inert gas extraction with minimal downtime. As a recognized vacuum pump supplier, we provide systems engineered for easy integration within complex mechanical assemblies, benefiting users prioritizing operational continuity and equipment compatibility.
Precision Engineering and Technical Specifications
This oil sealed vacuum pump incorporates a three-rotary-vane configuration lubricated by dedicated vacuum pump oil that functions both in heat conduction and internal cleaning. The air-cooled design largely eliminates the requirement for water cooling, reducing maintenance complexity and supporting environmental compliance with clean exhaust emissions. With pumping speeds varying from 63 to 1200 m³/h depending on model, and ultimate pressures reaching as low as 0.1 mbar, these pumps exhibit versatility across pressure regimes. Motor power options ranging from 2.2 kW to 7.5 kW accommodate diverse operational demands. A modular approach to configurations, maintained by trusted rotary vane vacuum pump manufacturers, allows for customization including motor numbers and pump assembly variants to suit specific system requirements.
Industrial Applications and Operational Benefits
The oil sealed rotary vane vacuum pump unit finds application in critical vacuum processes such as vacuum packaging, thermoforming, impregnation, and vacuum drying within food, pharmaceutical, and chemical sectors. Its stable, low-vibration operation supports robotic suction and vacuum conveying tasks in complex production lines. The pump’s compliance with international quality standards ensures suitability for central vacuum systems utilized in factories and laboratories, where reliable performance is essential. By providing efficient vacuum extraction with low noise, the unit adds value through improved process consistency and reduces operational costs via energy-saving features, thus aligning with stringent industrial process control requirements.
Product Advantages
Robust Structural Design and Modular Configuration

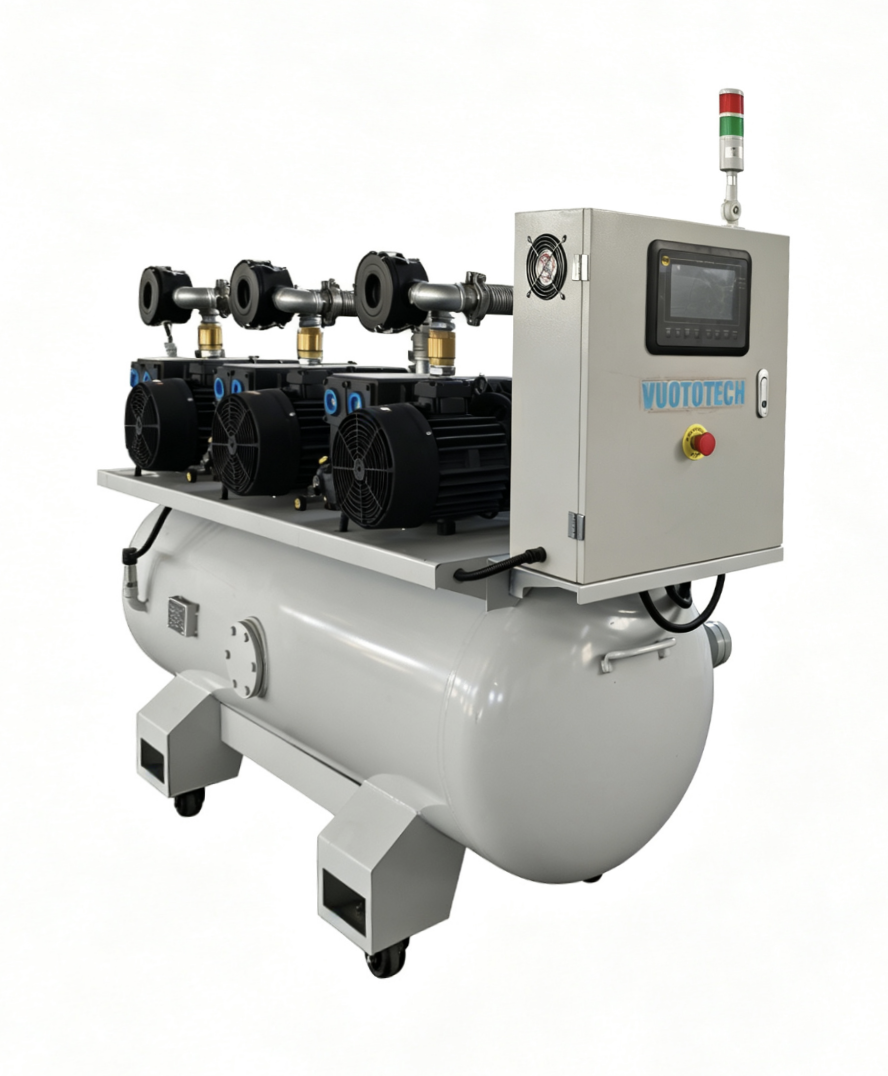

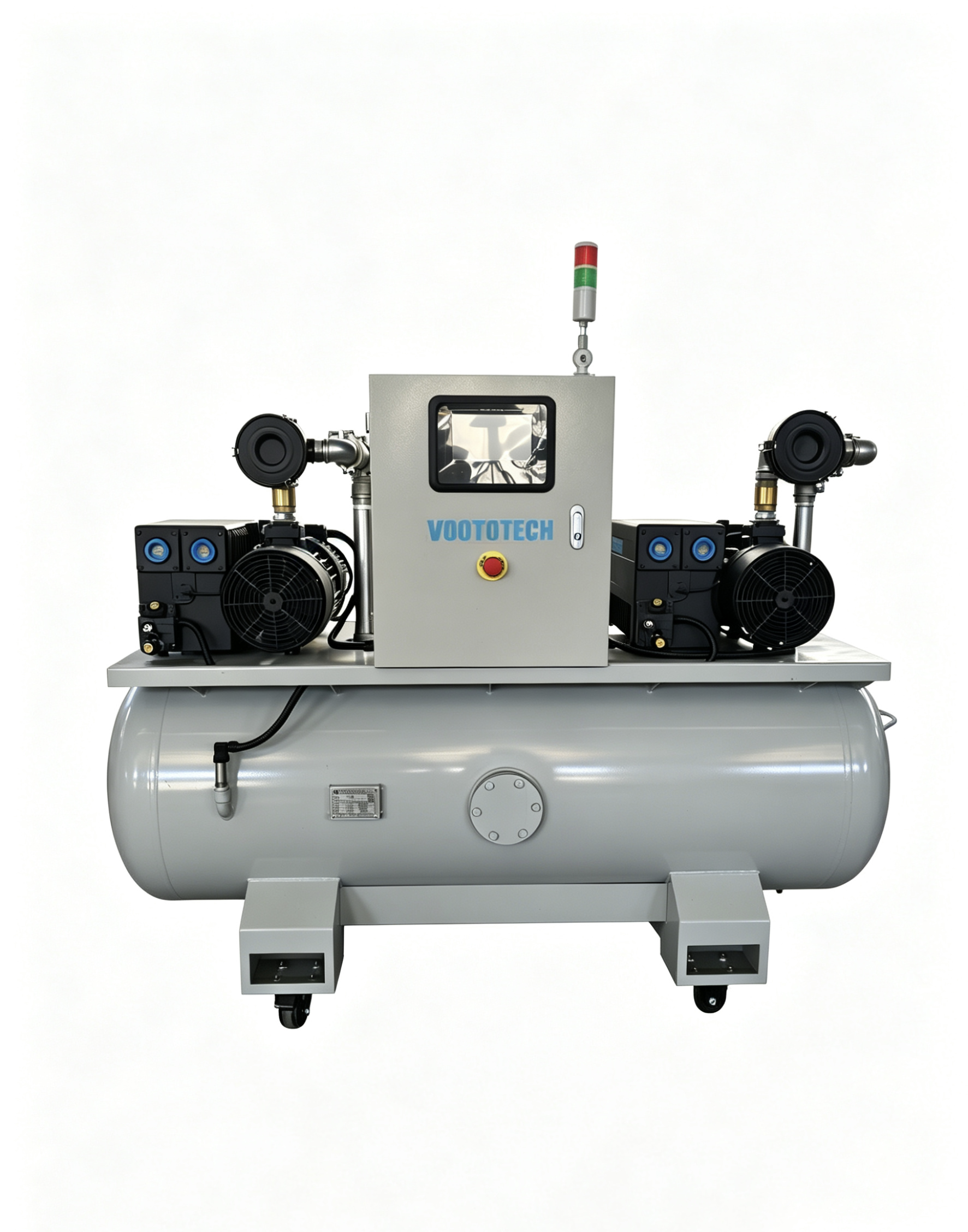

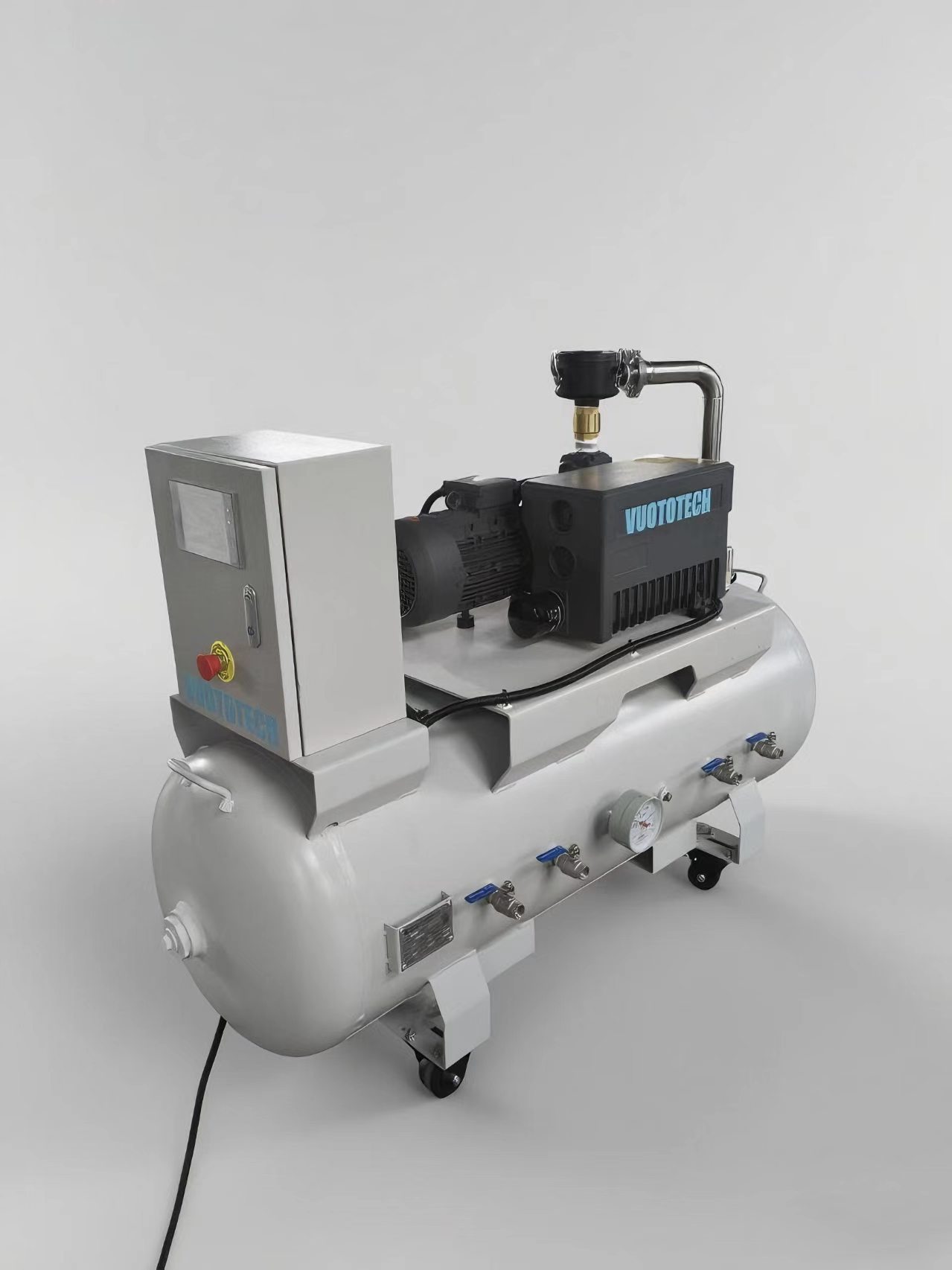

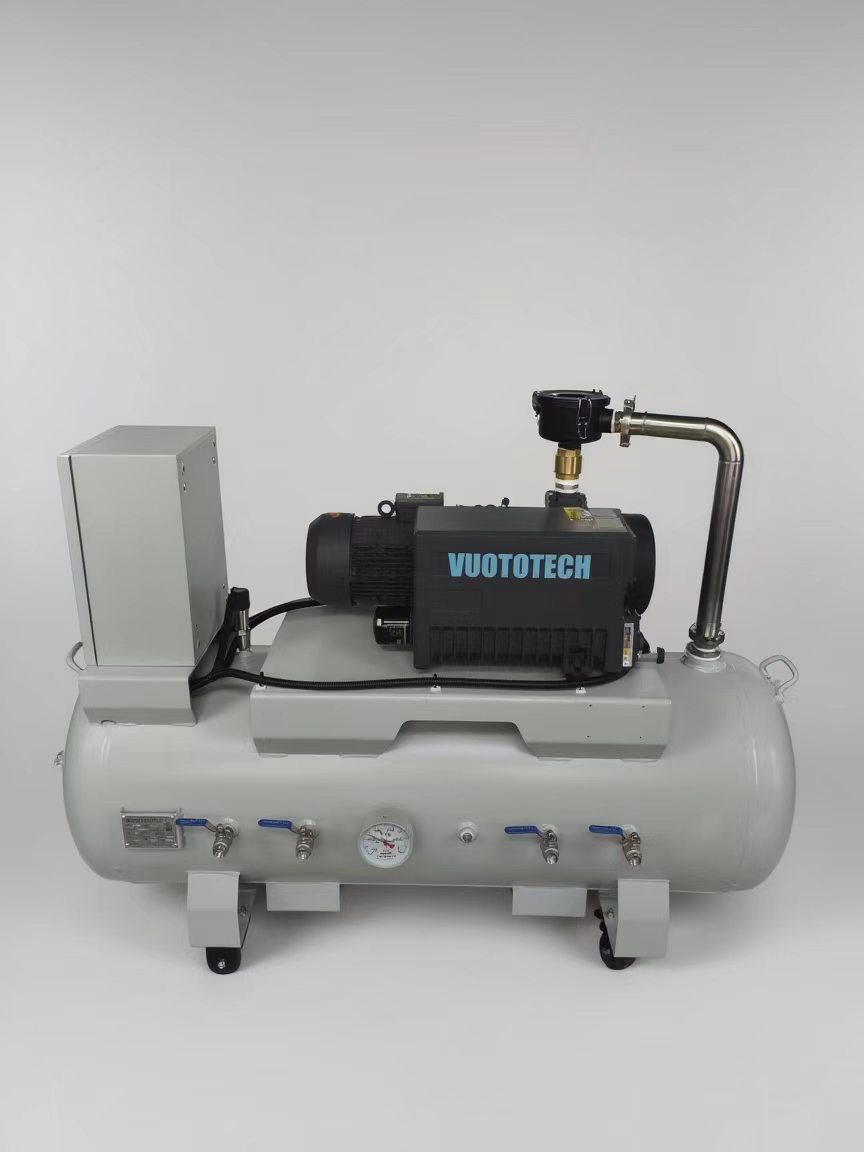

Engineered with a single stage rotary vane vacuum pump configuration, this oil sealed rotary vane vacuum pump benefits from a compact, lightweight design optimizing installation space and mechanical integration. The three-vane rotor assembly, lubricated with specialized vacuum pump oil, promotes enhanced durability and self-cleaning capabilities that reduce contamination risks. As a reliable product among rotary vane vacuum pump suppliers, the unit incorporates an air cooling system standard to avoid external water dependencies, thereby increasing design adaptability across various industrial environments. Additionally, modular skid-mounted steel frames and PLC control options present extensive system flexibility for customized automation and maintenance protocols.
Enhanced Performance and Operational Efficiency
The oil sealed vacuum pump delivers steady vacuum output with minimal noise and vibration, characteristics that reduce wear and extend service intervals—key considerations for procurement focused on lifetime ROI. The pump’s energy efficiency translates into lower electricity consumption, supported by optimized motor configurations. Users benefit from straightforward maintenance processes courtesy of the oil-lubricated rotary vane system and simplified cooling needs. As a trusted vacuum pump manufacturer, we ensure each unit aligns with international environmental regulations, offering clean exhaust emissions that promote workplace safety while contributing to operational sustainability and cost-effectiveness.
Technical Description
Overview

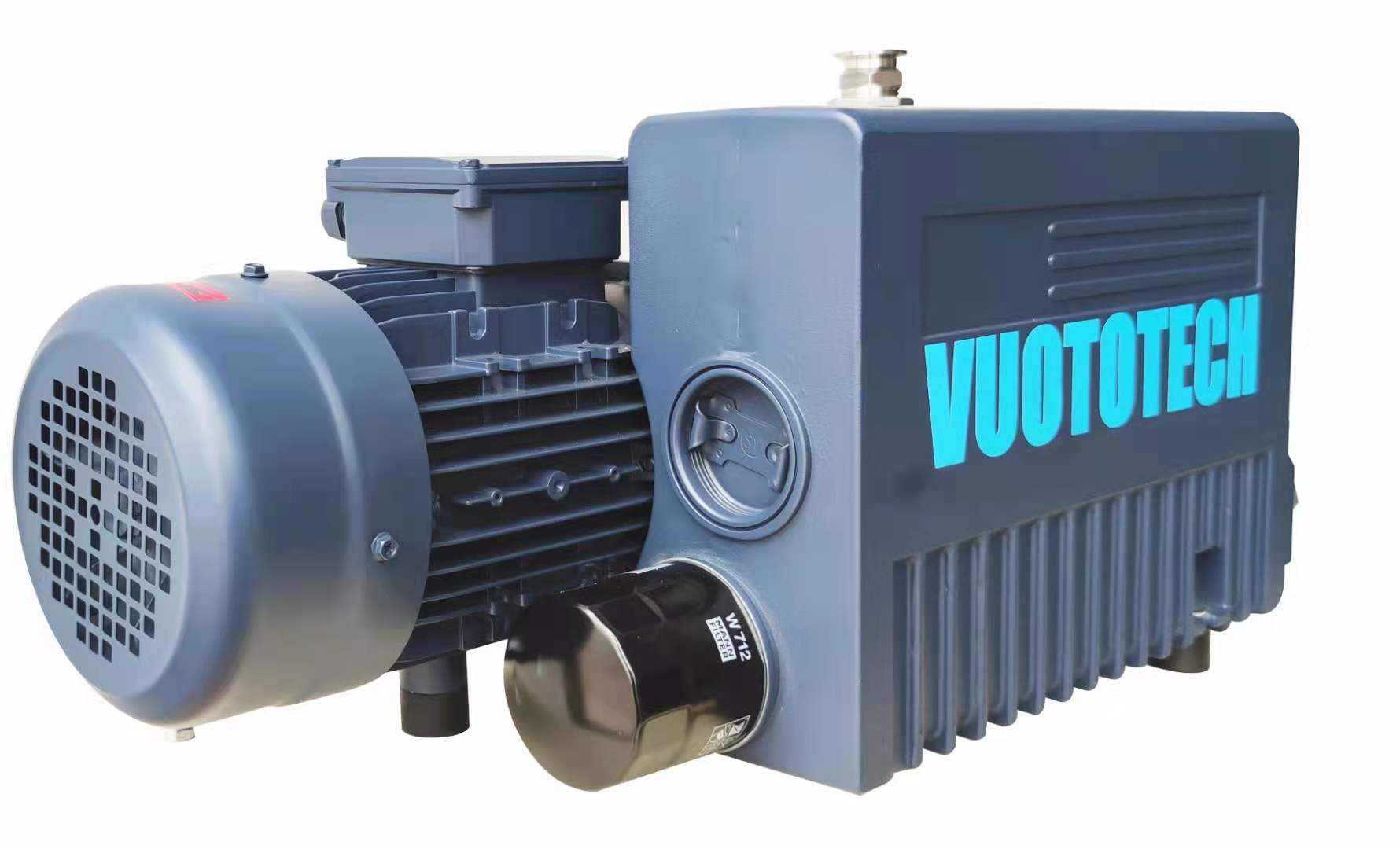

The VX-series vacuum pumps are fundamental vacuum generation equipment. They feature single-stage compression and a three-rotary-vane structure, with dedicated vacuum pump oil used as the working fluid for lubrication, heat conduction, and working chamber cleaning.
The VX-series is designed for rough, low and medium vacuum ranges. It is applicable for extracting ordinary air and inert gases, as well as a small amount of condensable gases such as water vapor. The operating pressure range of the pump spans from atmospheric pressure to its ultimate pressure.
Features
Typical Applications
| Model | Pumping Speed | Ultimate Pressure | Motor Power | Air Inlet Port | Weight | Size（L×W×H） | Remarks | |
| m3/h | mbar | Kw | DN | Kg | mm | |||
| VX-63-2 | 63-126 | 0.1—0.5 | 2.2×2 | 25 | 210 | 850*850*1600 | Skid-mounted steel frame platform (standard split type, integrated type optional) PLC automatic control system (7-inch touch screen, displaying vacuum pressure, operating temperature, current, voltage and running time; manual-automatic integrated control system is optional) The unit operates at an ambient temperature of 0~40℃. Please contact the factory for special ambient temperature requirements. All pumping speed calculations exclude standby equipment, measured at an intake vacuum pressure of 60kPa and converted to atmospheric pressure value. The buffer tank is normally made of carbon steel (stainless steel material and customized volume are optional). The configuration of "quantity of vacuum pumps" and "total motor power" is standard configuration. Please consult the manufacturer for other configurations. More models can be customized and manufactured according to customer requirements. |
|
| VX-100-2 | 100-200 | 3×2 | 40 | 265 | 850*850*1600 | |||
| VX-100-3 | 100-300 | 3×3 | 50 | 345 | 850*850*1600 | |||
| VX-100-4 | 100-400 | 3×4 | 50 | 423 | 850*850*1600 | |||
| VX-200-2 | 200-400 | 5.5×2 | 50 | 480 | 1200*850*1600 | |||
| VX-200-3 | 200-600 | 5.5×3 | 65 | 655 | 1200*850*1600 | |||
| VX-200-4 | 200-800 | 5.5×4 | 65 | 800 | 1200*850*1600 | |||
| VX-300-2 | 300-600 | 7.5×2 | 65 | 620 | 1200*850*1600 | |||
| VX-300-3 | 300-900 | 7.5×3 | 80 | 870 | 1200*850*1600 | |||
| VX-300-4 | 300-1200 | 7.5×4 | 80 | 1081 | 1200*850*1600 | |||
Use Scenarios
Vacuum Packaging and Food Processing Systems
In the food processing sector, controlled vacuum environments are essential to maintain product freshness and extend shelf life during packaging. The oil sealed rotary vane vacuum pump functions as the core vacuum source, efficiently removing air and inert gases while handling small amounts of condensable vapors commonly encountered in packaging lines. Its stable pumping capacity between 63 and 1200 m³/h matches various production throughput requirements. Integration with automated packaging machinery is facilitated by its low noise and compact footprint. This vacuum pump supplier solution supports compliance with hygiene and environmental standards by virtue of clean exhaust emissions and reliable operation under continuous workloads, enhancing packaging quality and productivity.

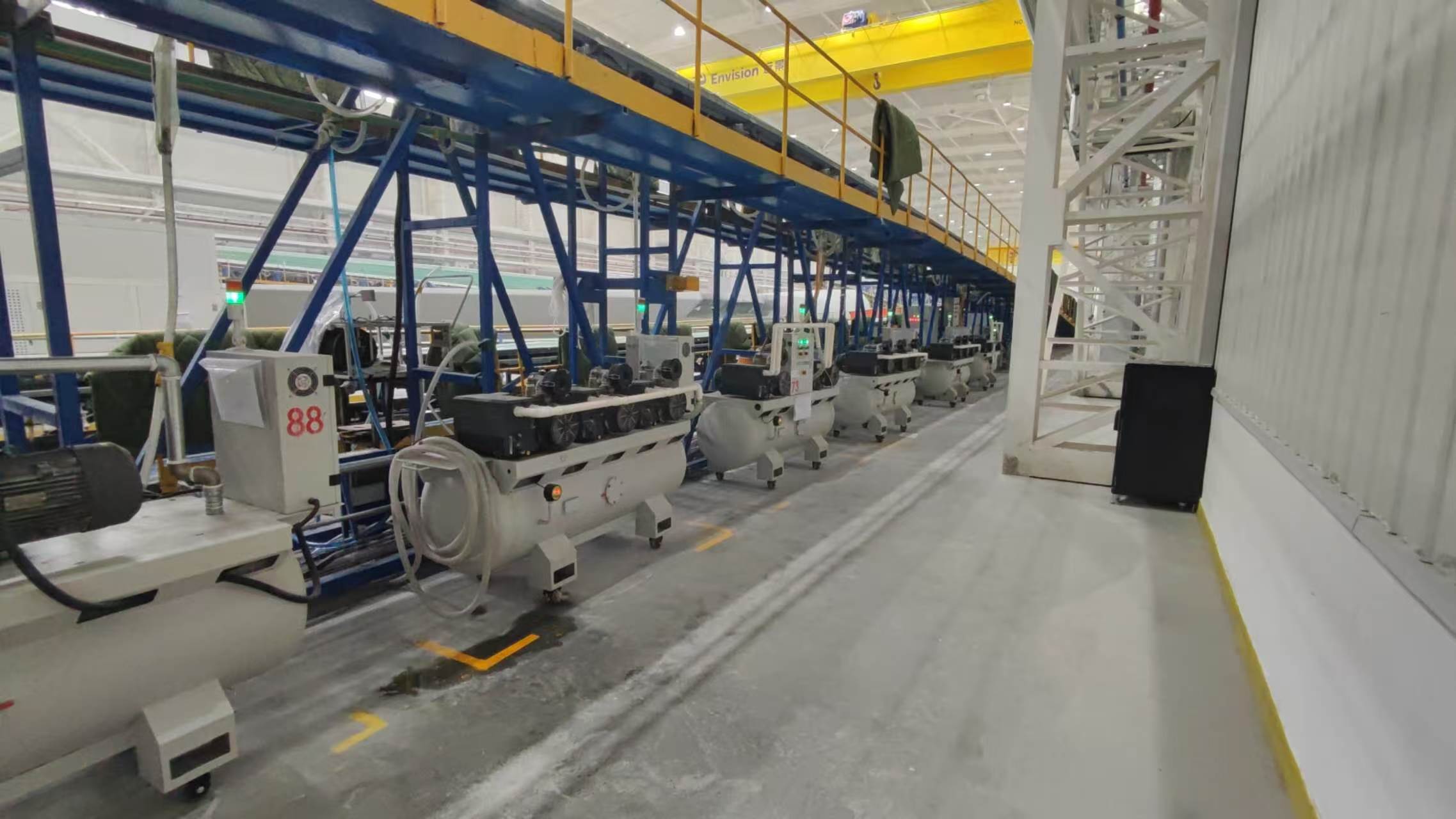

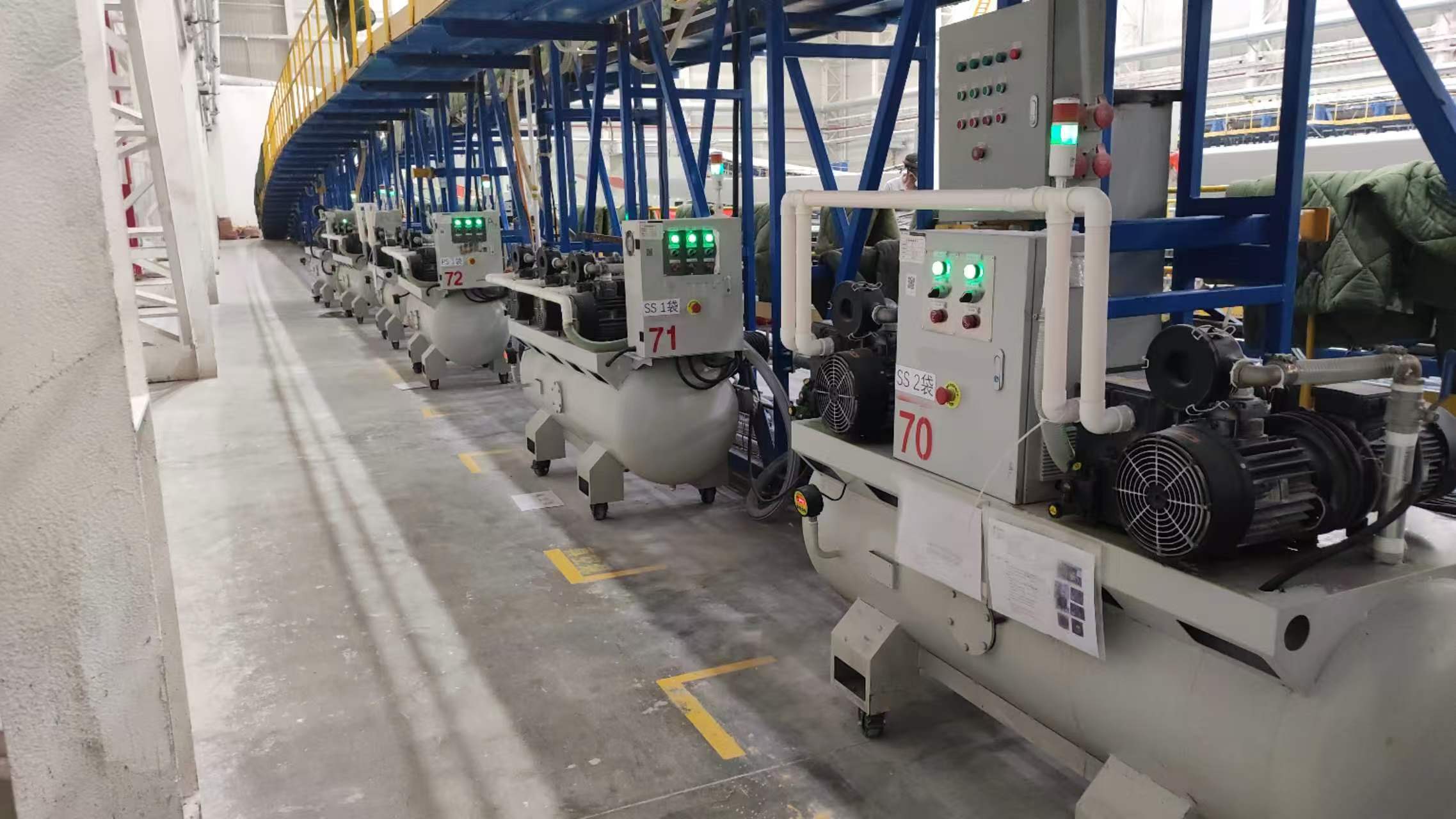

Central Vacuum Systems in Laboratory and Industrial Facilities
Centralized vacuum supply is critical in laboratories and manufacturing plants where multiple processes demand consistent vacuum pressure. Our single stage rotary vane vacuum pump meets these demands by delivering robust performance suitable for vacuum drying, filtration, and vacuum crystallization applications. Its modular design allows installation in clustered configurations to accommodate varying suction load distributions. The air-cooled oil sealed vacuum pump design minimizes cooling system complexity, essential for environments where water resources are limited. Through its adaptability and stable flow rates, it seamlessly integrates with plant-wide air systems, ensuring reliable vacuum availability, system redundancy, and compliance with occupational safety standards. This positions the pump as a cornerstone technology among vacuum pump manufacturers offering centralized vacuum solutions.
What industries can benefit from your Oil-sealed Rotary Vane Vacuum Pump Unit?
Our vacuum pump units serve diverse industries including food processing, material treatment, and vacuum conveying. The reliable performance of our rotary vane vacuum pump supports applications like vacuum packaging, thermoforming, and vacuum drying, tailored for industrial use requiring efficient vacuum generation.
Can I customize the motor power and configuration of the vacuum pump?
Yes, we offer customization of the motor power and pump configurations to suit your specific process requirements. Whether you need a single-stage rotary vane vacuum pump with 2.2 kW motors or multiple motor setups, we can provide flexible solutions as a trusted vacuum pump supplier.
How do you ensure maintenance is manageable for your vacuum pumps?
Our oil sealed rotary vane vacuum pump features air cooling as standard, reducing maintenance compared to water-cooled systems. The use of specialized vacuum pump oil for lubrication and cleaning enables stable operation with minimal noise and vibration, simplifying upkeep and lowering operating costs.
What logistics and installation support do you provide for your vacuum pump units?
We supply vacuum pump units with options such as skid-mounted steel frames to facilitate handling and installation at your site. We also provide technical guidance to ensure correct setup, supporting your project from consultation to commissioning with a reliable vacuum pump manufacturer.
