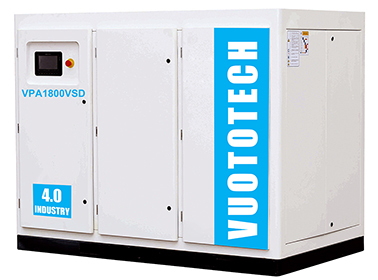

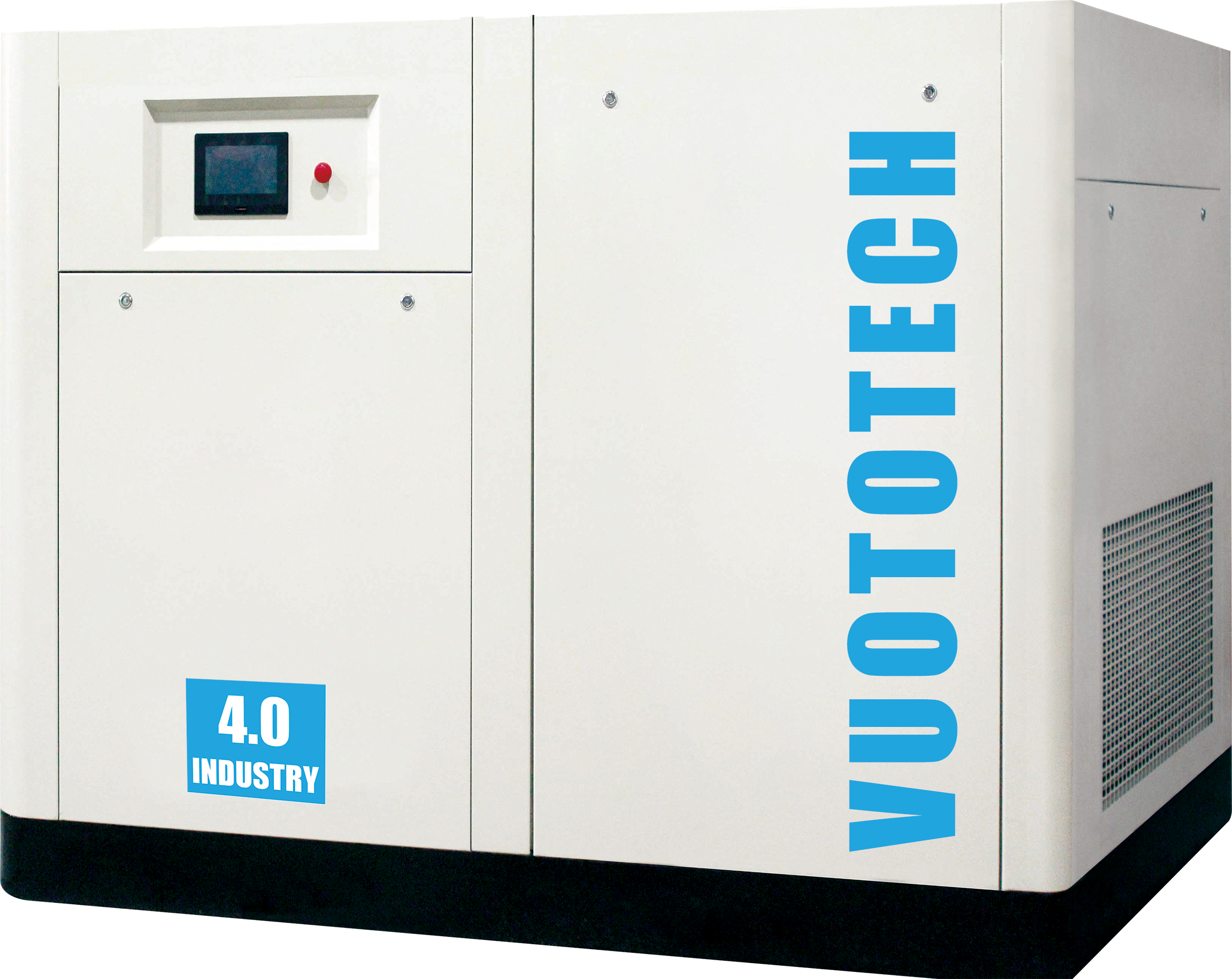

Oil-Injected Screw Air Compressors

The oil-injected rotary screw air compressor delivers efficient, robust compressed air solutions designed for industrial reliability. Trusted by air compressor manufacturers and air compressor suppliers, it integrates seamlessly within complex air compressor system networks.
Download
View all downloads
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors
  • Oil-Injected Screw Air Compressors,MY SHOP,Oil-Injected Screw Air Compressors

Description


Industrial Reliability for Demanding Air Compression Needs
Engineered by expert air compressor manufacturers, this oil-injected rotary screw air compressor is designed to support heavy industrial usage requiring steady and reliable compressed air. It is targeted towards manufacturing plants, assembly lines, and large-scale production facilities that rely on consistent air delivery for their operations. As a critical component within an air compressor system, it fulfills the requirements of engineers and system integrators seeking equipment capable of consistent performance under demanding conditions. Its robust build quality and adaptability make it suitable for clients purchasing from reputable air compressor suppliers aiming to optimize operational uptime and system integration.


Advanced Mechanical and Electrical Features Ensure Efficiency
This compressor model incorporates forged steel rotors and heavy-duty bearings optimized through oil injection for superior lubrication and cooling, significantly reducing wear. A permanent magnet variable frequency motor enables high energy efficiency and allows unlimited start-stop cycles without motor degradation. The Siemens-branded electrical control system provides precise, stable operation with bilingual LED interface options, supporting pressure ranges from 7 to 13 barg and power ratings between 4 kW and 110 kW. These detailed specifications demonstrate its compatibility with various industrial air compressor system configurations and its suitability for clients working with specialized air compressor suppliers requiring verified performance metrics.


Versatile Integration Across Industrial Applications
The oil-injected rotary screw air compressor is implemented in numerous industrial sectors such as automotive manufacturing, electronics assembly, and food processing, where precise and steady compressed air is mandatory. Its low-noise operation and energy-saving variable frequency drive meet rigorous environmental and workplace safety standards. Within complex air compressor system infrastructures, it functions as a reliable compressed air source that enhances throughput and reduces maintenance downtime. Procurement managers and engineers selecting products from established air compressor manufacturers regard this compressor as a solution that combines mechanical durability with operational sophistication in demanding industrial environments.



Product Advantages


Robust Design and Seamless System Integration
The design of this air compressor system emphasizes mechanical strength paired with advanced electronic controls, ensuring durability and long service life under continuous operation. The use of forged steel rotors and heavy-duty bearings within an oil-injected framework optimizes lubrication and thermal management, minimizing component wear. The modular control system equipped with Siemens electrical components allows straightforward integration into existing compressed air networks. This cohesive design enables air compressor suppliers and system engineers to deploy the compressor reliably within complex air compressor system configurations without extensive customization.


Superior Operational Performance and Reduced Lifecycle Costs
Operationally, the compressor’s permanent magnet variable frequency motor facilitates considerable energy savings while supporting unlimited start-stop cycles, essential for modern industrial workflows requiring frequent cycling. Its low noise emission, typically between 65 and 68 dB, contributes to compliance with workplace safety regulations. The user-friendly bilingual control interface simplifies monitoring and reduces downtime via intuitive diagnostics. As a product sourced from a competent air compressor manufacturer, it provides end users with a balance of efficiency, reliability, and ease of maintenance, thereby optimizing total cost of ownership in industrial compressed air applications.

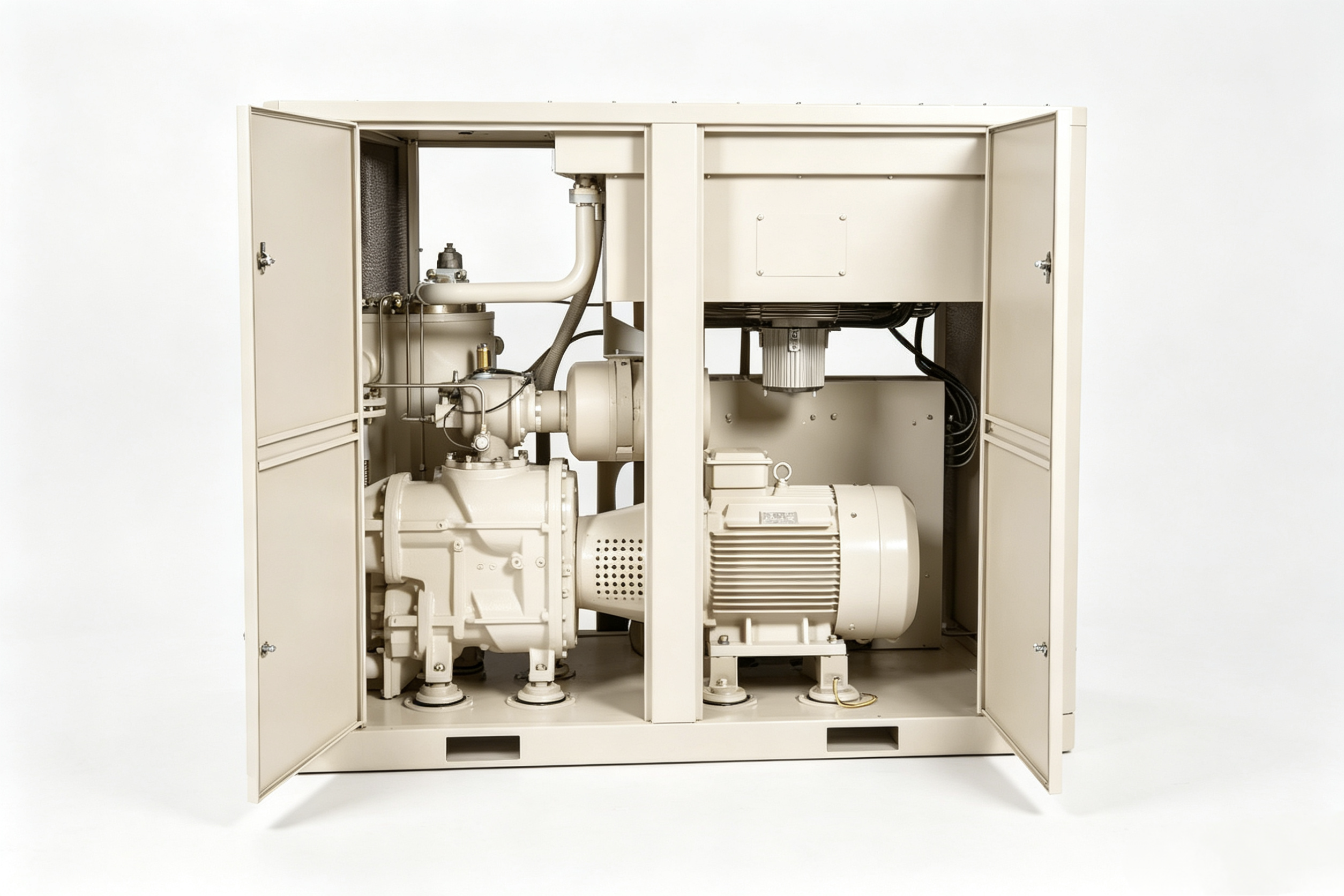

Main Unit

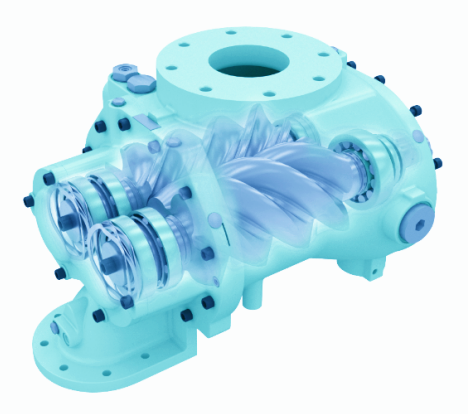

The main unit is the core component of a screw air compressor. It is designed for reliable quality, stable performance and high operating efficiency, which not only minimizes manufacturing tolerances but also enables precise assembly of the main unit. Meanwhile, other key components of the air compressor provide crucial support and control for the reliable operation of the main unit.

A. Rotor Design

The main unit adopted by the V-series is equipped with rotors made of American-standard forged steel. For large-sized main units, rotor profiles are processed through two special procedures. The first step is rough machining to complete the processing of the envelope angle of the rotor profile. The second step is grinding to form a solid surface. The rotating shaft is processed with high precision to control the tolerance within 0.0005 feet. The sealing strips of the main unit are completed during the secondary processing of the female rotor, which reduces air leakage by sealing the compression chamber. After rotor machining, each rotor undergoes integrity testing on a coordinate measuring machine. Every pair of rotors is matched with a dedicated rotor housing made of dense cast iron. The dimensions of each rotor housing are strictly inspected to ensure high precision.

B. Bearing Design

The V-series adopts a durable heavy-duty bearing design for the main unit, with a designed service life of over 100,000 hours. High-quality cylindrical roller bearings are installed at the air inlet end of the rotors to bear radial loads.

C:\Documents and Settings\kiddg\桌面\pic of cougar\ppt8.jpg

Both axial thrust bearings and radial bearings are high-precision compressed air exhaust bearings, featuring harder and more accurate raceway rolling surfaces.

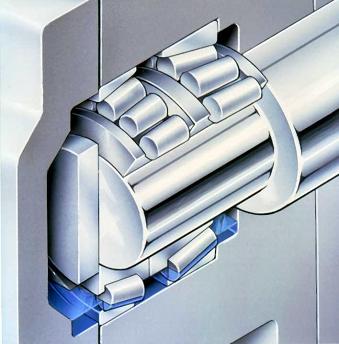

The exhaust end adopts a back-to-back tapered roller bearing structure. Tapered roller bearings are mainly composed of rollers and raceways, bearing thrust loads through line contact and capable of withstanding various radial and axial thrust loads. Thanks to this structural design, a pair of tapered roller thrust bearings are mounted on the offset main shafts at the exhaust ends of both female and male rotors, to maximally absorb axial thrust and radial loads.

Each bearing is designed with a coolant oil groove. When the compressor shuts down, the oil groove stores coolant. Upon restarting, the bearings can be fully lubricated, effectively extending the service life of bearings and the main unit.

Permanent Magnet Variable Frequency Motor

VUOTOTECH permanent magnet variable frequency air compressors are driven by permanent magnet synchronous motors. Compared with traditional electrically excited motors, permanent magnet motors, especially rare-earth permanent magnet motors, boast outstanding advantages: simple structure, reliable operation, small size, light weight, low energy loss and high efficiency, with flexible motor shapes and dimensions. They are widely applied in aerospace, national defense, industrial and agricultural production, daily life and many other fields.

Compared with ordinary power frequency motor-driven air compressors, permanent magnet synchronous motor-driven variable frequency air compressors have the following core advantages:

  • Superior Motor Performance

The hybrid permanent magnet motor features a detachable stator winding that can be replaced on-site. It achieves high power in a compact size — its volume is only 33% of a traditional variable frequency motor, while its magnetic flux is three times higher. It can be directly connected to and drive the male rotor of the main unit. Its unique structural layout eliminates wearing parts and motor bearings.

  • Unlimited Start-Stop Cycles

The hybrid permanent magnet motor supports unlimited start-stop operations to meet fluctuating air demand without causing damage to the motor. The unit will automatically shut down when air consumption drops to the minimum, avoiding energy waste caused by idling and unloading of traditional air compressors.

  • Increased Motor Air Gap

The enlarged motor air gap allows the HPM motor to operate stably at an ambient temperature of 46°C (115°F), effectively preventing unexpected shutdowns.

  • Low Noise

Optimized slot-pole matching and magnetic field design expand the operating frequency range and reduce operating noise.

  • Compact Structure & Light Weight

The permanent magnet rotor features small size and high power density.

  • High Starting Torque

The starting torque and overload capacity of permanent magnet synchronous motors are one power level higher than three-phase asynchronous motors. The ratio of maximum starting torque to rated torque reaches more than 3 times, while that of ordinary asynchronous motors is only 1.6 times.

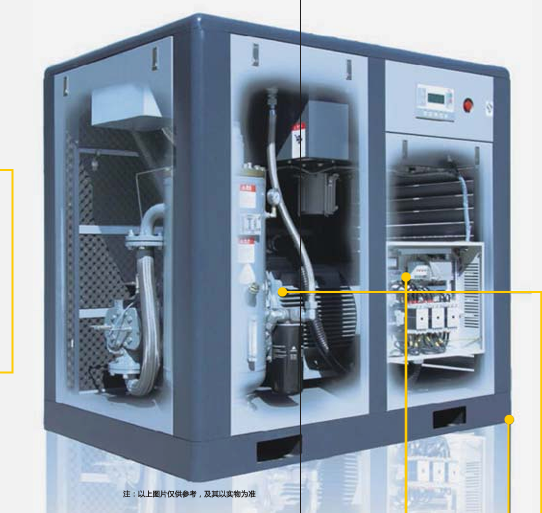

Air Compressor Control System

1637154064(1)_副本

Electrical Components

The V-series is equipped with Siemens brand electrical components. The electric control box is installed on the air inlet side of the air compressor where the ambient temperature is lower, which prevents heat-sensitive electrical components from aging, extends service life and ensures stable and efficient operation.

  • Controller

The V-series is fitted with a specially designed intelligent controller with humanized operation interface:

  1. Elegant and streamlined appearance, equipped with a large, high-definition LED screen with delicate pixels, capable of displaying multiple lines of operating parameters, historical records and other information simultaneously.
  2. Standard Chinese and English bilingual display, meeting the production and management needs of various enterprises.


Model  Pressure Rated Power Displacement Noise Exhaust Port Size (LxWxH) Weight
barg kW m³/min dB BSPT mm kg
V4-7 7 4 0.58 65 0.75‘’ 795*630*990 210
V4-8 8 0.55
V4-10 10 0.5
V4-13 13 0.48
V5-7 7 5.5 0.85 65 0.75‘’ 225
V5-8 8 0.83
V5-10 10 0.78
V5-13 13 0.7
V7-7 7 7.5 1.15 65 0.75‘’ 238
V7-8 8 1.12
V7-10 10 1.03
V7-13 13 0.95
V11-7 7 11 1.65 65 0.75‘’ 260
V11-8 8 1.63
V11-10 10 1.52
V11-13 13 1.35
V15-7 7 15 2.58 66 1‘’ 985*880*1250 380
V15-8 8 2.5
V15-10 10 2.4
V15-13 13 2.1
V18-7 7 18.5 3.2 66 1‘’ 490
V18-8 8 3.1
V18-10 10 3
V18-13 13 2.8
V22-7 7 22 3.8 66 1‘’ 510
V22-8 8 3.7
V22-10 10 3.5
V22-13 13 3.3
V30-7 7 30 5.7 68 1.5'' 1230*1250*1550 850
V30-8 8 5.5
V30-10 10 5.2
V30-13 13 5
V37-7 7 37 6.5 68 1.5'' 890
V37-8 8 6.3
V37-10 10 6
V37-13 13 5.8
V45-7 7 45 8.2 69 1.5'' 930
V45-8 8 8
V45-10 10 7.6
V45-13 13 7.3
V55-7 7 55 11.8 69 1.5'' 1900*1250*1550 1650
V55-8 8 10.5
V55-10 10 9.7
V55-13 13 8.3
V75-7 7 75 14.5 69 2'' 2100*1250*1550 1980
V75-8 8 13.5
V75-10 10 12
V75-13 13 10.8
V90-7 7 90 18.2 72 2'' 2200
V90-8 8 17.5
V90-10 10 15
V90-13 13 13.8
V110-7 7 110 22 72 2.5'' 2800*1500*1900 2560
V110-8 8 21.2
V110-10 10 20.1
V110-13 13 19.5



Use Scenarios


Compressed Air Supply for Manufacturing Plants
In large-scale manufacturing environments, the need for stable, high-quality compressed air is paramount. This oil-injected rotary screw air compressor operates as a central component in industrial air compressor system installations, delivering consistent pressure within the 7 to 13 barg range. Its advanced control systems and robust build ensure compliance with demanding production standards, reducing downtime and supporting continuous operation on assembly and fabrication lines. Procurement from reliable air compressor suppliers ensures integration with existing infrastructure while optimizing energy consumption and process reliability.


Industrial Noise-Sensitive Facility Applications
For industrial facilities where noise reduction is critical, such as electronics manufacturing or precision assembly plants, this air compressor system offers a low noise profile enhanced by dedicated sound insulation and optimized magnetic designs. The oil-injected rotary screw air compressor minimizes operational noise typically down to 65–68 dB, facilitating compliance with strict workplace noise regulations. Its oil injection lubrication reduces mechanical strain, extending service intervals and integration ease within existing air compressor system frameworks. These performance benefits make it a preferred choice among engineers working with experienced air compressor manufacturers and suppliers focused on efficient, low-impact compressed air solutions.



FAQ


What materials are used in the oil-injected rotary screw air compressor’s key components?
Our compressor uses American-standard forged steel for rotors and heavy-duty cylindrical and tapered roller bearings with coolant oil grooves. These materials ensure durability and high performance in demanding industrial environments.


Can you provide customized solutions to fit specific industrial air system requirements?
Yes, as a professional air compressor manufacturer, we offer tailored configurations including power ranges from 4 kW to 110 kW and pressure settings between 7 to 13 barg to meet your application needs.


What support does VOTOTECH offer for compressor installation and integration?
We provide comprehensive installation support and system integration advice to ensure smooth setup within your existing industrial air networks, helping optimize your compressed air delivery for manufacturing efficiency.


How do you ensure reliability and low maintenance in your industrial air compressor systems?
Our design incorporates oil injection for optimal lubrication, Siemens electrical components for precise control, and permanent magnet variable frequency motors that support unlimited start-stop cycles, reducing wear and maintenance frequency. This reliability is characteristic of a trusted air compressor supplier.
